Pressure Vessels
Project Information
- Client: Petrofac (U.A.E.)
- End-User: BG Tunisia, Hayan Petroleum, Turkmengas
- Location: Tunisia, Turkmenistan
- Design Code: ASME (Sec.VIII Div.1 & Div.2)
- Completion: 2008 - 2009 - 2012
Vessel Characteristics
- 24 Vessels / Columns
- Total weight of 3929 t
- Range of Vessels:
- Weight: 27 t to 504 t
- Length: 10 m to 39 m (tt)
- Int. Diameter: 1 m to 5 m
- Wall Thickness: 16 mm to 112 mm
Materials
- SA 516 Gr.65
- SA 240 TP 316L
- SS 316L Weld Overlay Application
- Incoloy 825 Weld Overlay Application
- Incoloy 625 Weld Overlay Application
Heaviest Vessel: Slug Catcher Surge Vessels
(4 pcs. / 504 t / 4 m ID / 39 m Length / Wall Thickness = 112 mm)

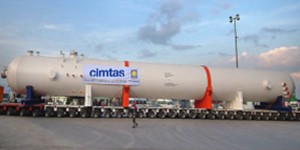

Slug Catcher Surge Vessels
| Quantity | : | 4 |
| Design Code | : | ASME Sec. VIII Div.2 |
| Dimensions | : | ID 4 m x L 45 m |
| Shell/Head t | : | 112 mm / 59 mm |
| Weight | : | 504 t |

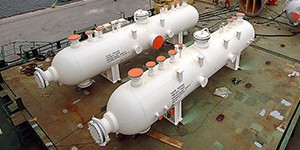

Slug Catcher Primary Seperators
| Quantity | : | 2 |
| Design Code | : | ASME Sec. VIII Div.2 |
| Dimensions | : | ID 2 m x L 13 m |
| Shell/Head t | : | 61 mm / 34 mm |
| Weight | : | 43 t |

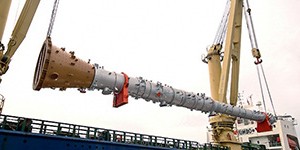

Condensate Stabilizer
| Quantity | : | 1 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 1/2 m x L 36 m |
| Shell/Head t | : | 14 - 27 mm / 21 mm |
| Weight | : | 52 t |
Amine Adsorber
| Quantity | : | 1 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 3 m x L 32 m |
| Shell/Head t | : | 84 mm / 82 mm |
| Weight | : | 171 t |
Amine Stripper
| Quantity | : | 1 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 2 m x L 31 m |
| Shell/Head t | : | 16 - 20 mm / 18 - 20 mm |
| Weight | : | 54 t |

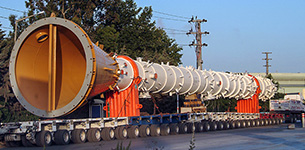

Deethanizer
| Quantity | : | 1 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 1/2 m x L 42 m |
| Shell/Head t | : | 35 - 40 mm / 33- 40 mm |
| Weight | : | 112 t |

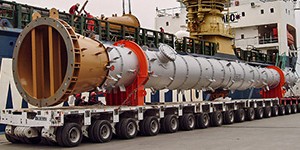

Depropanizer
| Quantity | : | 1 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 1/2 m x L 36 m |
| Shell/Head t | : | 18 - 23 mm / 1820 mm |
| Weight | : | 43 t |

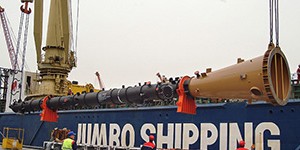

Debutanizer
| Quantity | : | 1 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 1 m x L 28 m |
| Shell/Head t | : | 14 - 16 mm / 13 - 14 mm |
| Weight | : | 25 t |
Slug Catcher
| Quantity | : | 8 |
| Design Code | : | ASME Sec. VIII Div.2 |
| Dimensions | : | ID 2 m x L 10 m |
| Shell/Head t | : | 104 mm / 52 mm |
| Weight | : | 90 t |

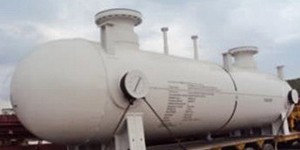

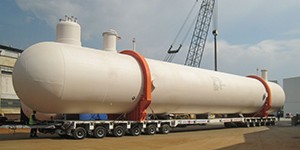

LPG Storage Bullet
| Quantity | : | 4 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 4 m x L 32 m |
| Shell/Head t | : | 26 mm / 18 mm |
| Weight | : | 152 t |
