Signature Projects

Pressure Vessels

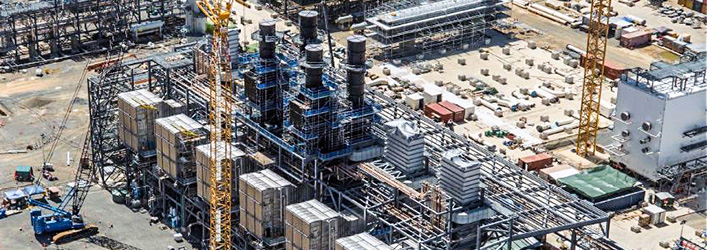

Jenerik-6

Project Information

  • Client: Overseas Bechtel Inc. (U.S.A.)
  • End-User: Egyptian LNG & Angola LNG
  • Location: Egypt & Angola
  • Design Code: ASME (Sec. VIII Div.1 & Div.2)
  • Completion: 2008 - 2004

Vessel Characteristics

  • 36 Vessels / Columns
  • Total weight of 6,000 t
  • Range of Vessels:
    • Weight: 6 t to 1,100 t
    • Length: 5 m to 48 m
    • Int. Diameter: 1 m to 6 m
    • Wall Thickness: 15 mm to 163 mm

Materials

  • SA 516 Gr.70N

Heaviest Vessel: CO2 Absorber

(1 piece / 1,100 t / 5 m ID / 48 m Length / Wall Thickness = 162 / 163 mm)

01_CO2-ABSORBER

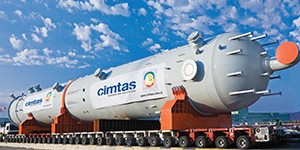

CO2 Absorber

Quantity:1
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 5 m x L 48 m
Shell/Head t:162 - 163 mm / 84 mm
Weight:1,100 t
02_MOLECULAR-SIEVE-DEHYDRATORS

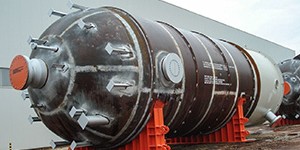

Molecular Sieve Dehydrators

Quantity:3
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 5 m x L 21 m
Shell/Head t:197 mm / 100 mm
Weight:400 t
03_DEPROPANISER-REFLUX-DRUM

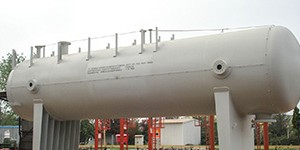

Depropaniser Reflux Drum

Quantity:1
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 3 m x L 15 m
Shell/Head t:29 mm / 29 mm
Weight:44 t
04_MERCURY-REMOVAL-BEDS

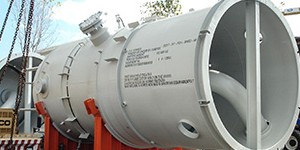

Mercury Removal Beds

Quantity:2
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 4 m x L 13 m
Shell/Head t:117 mm / 60 mm
Weight:108 t
05_CO2-ABSORBERS

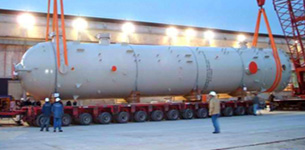

CO2 Absorbers

Quantity:2
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 4 m x L 27 m
Shell/Head t:78 mm / 41 mm
Weight:195 t
06_FEED-GAS-SEPARATORS

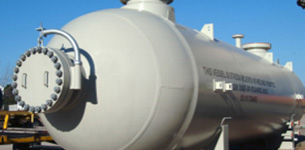

Feed Gas Separators

Quantity:2
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 3 m x L 12 m
Shell/Head t:65 mm / 35 mm
Weight:55 t
07_PROPANE-MERCURY-REMOVAL-BED-Edit

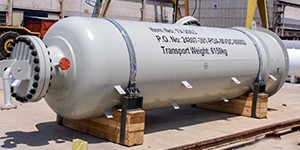

Propane Mercury Removal Bed

Quantity:1
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 1 m x L 7 m
Shell/Head t:16 mm / 16 mm
Weight:6 t
08_TREATED-GAS-K.O.-DRUMS

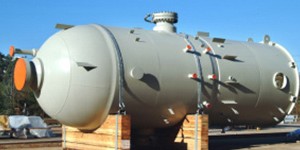

Treated Gas K.O. Drums

Quantity:2
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 4 m x L 10 m
Shell/Head t:71 mm / 37 mm
Weight:51 t

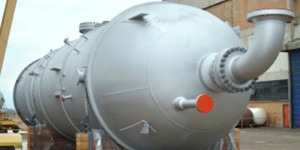

09_MOLECULAR-SIEVE-DEHYDRATORS

Molecular Sieve Dehydrators

Quantity:6
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 4 m x L 14 m
Shell/Head t:94 mm / 48 mm
Weight:98 t

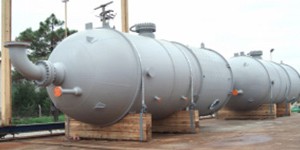

010_MERCURY-REMOVAL-BED-VESSELS

Mercury Removal Bed Vessels

Quantity:4
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 4 m x L 10 m
Shell/Head t:75 mm / 38 mm
Weight:60 t
