Signature Projects
Pressure Vessels
Project Information
- Client: Eastern Bechtel Co. Ltd. (U.K.)
- End-User: GASCO (U.A.E.)
- Location: Abu Dhabi (U.A.E.)
- Design Code: ASME (Sec.VIII Div.1 & Div.2)
- Completion: 2008
Vessel Characteristics
- 27 Vessels / Columns
- Total weight of 3,150 t
- Range of Vessels:
- Weight: 2 t to 500 t
- Length: 7 m to 45 m
- Diameter: 0.5 m to 4 m
- Wall Thickness: 12 mm to 117 mm
Materials
- SA 516 Gr.65
- API 5L X 52
- SS 316L Weld Overlay Application
- Incoloy 825 Weld Overlay Application

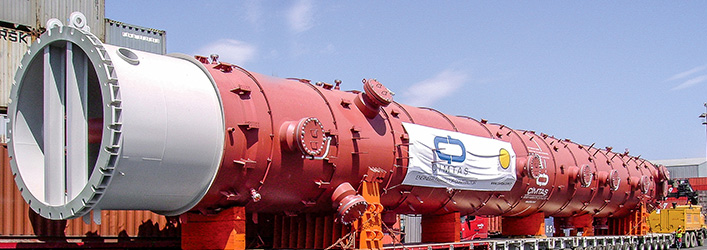

Heaviest Vessel: HP Absorbers
(2 pcs. / 500 t / 4 m ID / 45 m Length / Wall Thickness = 117 mm)

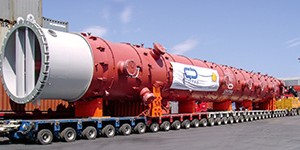

HP Absorbers
| Quantity | : | 2 |
| Design Code | : | ASME Sec. VIII Div.2 |
| Dimensions | : | ID 4 m x L 45 m |
| Shell/Head t | : | 110 mm-117 mm / 56 mm-63 mm |
| Weight | : | 500 t |

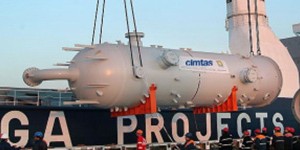

Sweet Gas K.O. Drums
| Quantity | : | 2 |
| Design Code | : | ASME Sec. VIII Div.2 |
| Dimensions | : | ID 4 m x L 17 m |
| Shell/Head t | : | 105 mm / 53 mm |
| Weight | : | 149 t |

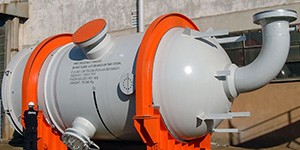

Sour Feed Gas K.O. Drums
| Quantity | : | 2 |
| Design Code | : | ASME Sec. VIII Div.2 |
| Dimensions | : | ID 4 m x L 11 m |
| Shell/Head t | : | 102 mm / 52 mm |
| Weight | : | 72 t |

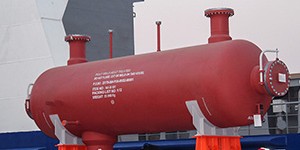

Gas Dehydration Inlet Separators
| Quantity | : | 2 |
| Design Code | : | ASME Sec. VIII Div.2 |
| Dimensions | : | ID 2 m x L 10 m |
| Shell/Head t | : | 67 mm / 65 mm |
| Weight | : | 52 t |

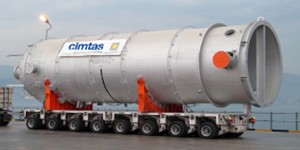

Molecular Sieve Gas Adsorbers
| Quantity | : | 6 |
| Design Code | : | ASME Sec. VIII Div.2 |
| Dimensions | : | ID 4 m x L 17 m |
| Shell/Head t | : | 111 mm / 58 mm |
| Weight | : | 147 t |

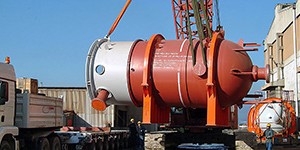

Mercury Adsorbers
| Quantity | : | 4 |
| Design Code | : | ASME Sec. VIII Div.2 |
| Dimensions | : | ID 4 m x L 11 m |
| Shell/Head t | : | 104 mm / 54 mm |
| Weight | : | 65 t |

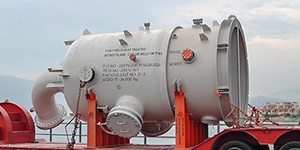

Booster Compressor Suction Scrubbers
| Quantity | : | 2 |
| Design Code | : | ASME Sec. VIII Div.2 |
| Dimensions | : | ID 3 m x L 7 m |
| Shell/Head t | : | 61 mm / 65 mm |
| Weight | : | 37 t |

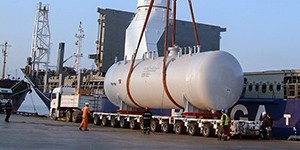

Propane Storage Drum
| Quantity | : | 1 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 4 m x L 14 m |
| Shell/Head t | : | 57 mm / 56 mm |
| Weight | : | 91 t |

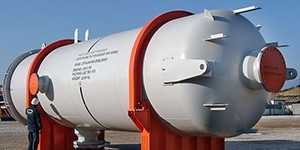

MP Fuel Gas K.O. Drum
| Quantity | : | 1 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 3 m x L 12 m |
| Shell/Head t | : | 53 mm |
| Weight | : | 40 t |

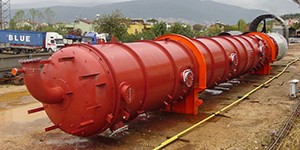

Solvent Regenerators
| Quantity | : | 1 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 3 m x L 12 m |
| Shell/Head t | : | 53 mm / 53 mm |
| Weight | : | 40 t |

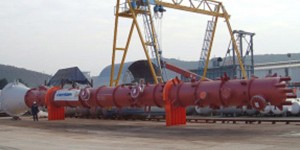

Stripper Column
| Quantity | : | 1 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 2 m x L 34 m |
| Shell/Head t | : | 16-25 mm / 16 mm |
| Weight | : | 31 t |
