Signature Projects

Heat Exchangers

Project Information

  • Client: Ak-Kim
  • End-User: Ak-Kim
  • Location: Turkey
  • Completion:  2002
01_THERMOSIPHON-REBOILER-Edit

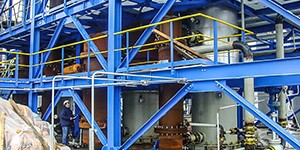

Thermosiphon Reboiler

Quantity:4
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 0.7 m – 1 m / L 4  m
Shell t:14 mm - 16 mm
Weight:24 t
02_AMMONIA-COLUMN

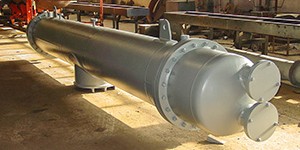

Ammonia Column Condenser

Quantity:1
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 0.8 m x L 8 m
Shell t:14 mm
Weight:9 t
03_EXTRACTION-COLUMN

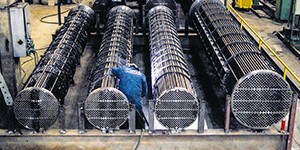

Extraction Column Condenser

Quantity:1
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 0.7 m / L 4 m
Shell t:8 mm
Weight:4 t
04_DEHYDRATION-COLUMN-Edit

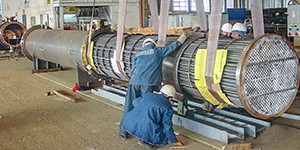

Dehydration Column Condenser

Quantity:1
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 1 m x L 8 m
Shell/Head t:12 mm
Weight:15 t
05_PRODUCT-COLUMN

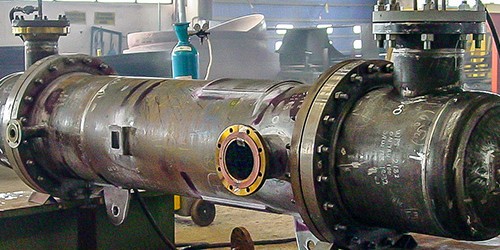

Product Column Condenser

Quantity:1
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 1 m x L 8 m
Shell/Head t:12 mm
Weight:19 t
